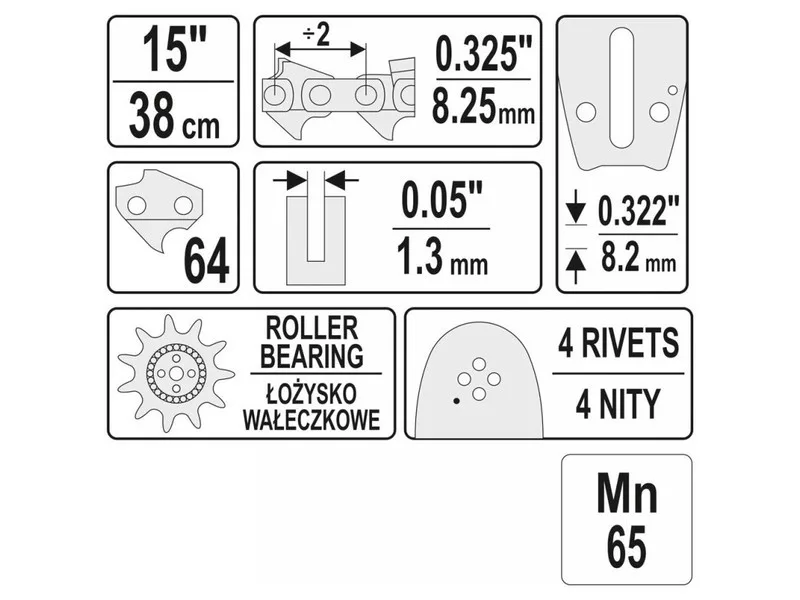

| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |

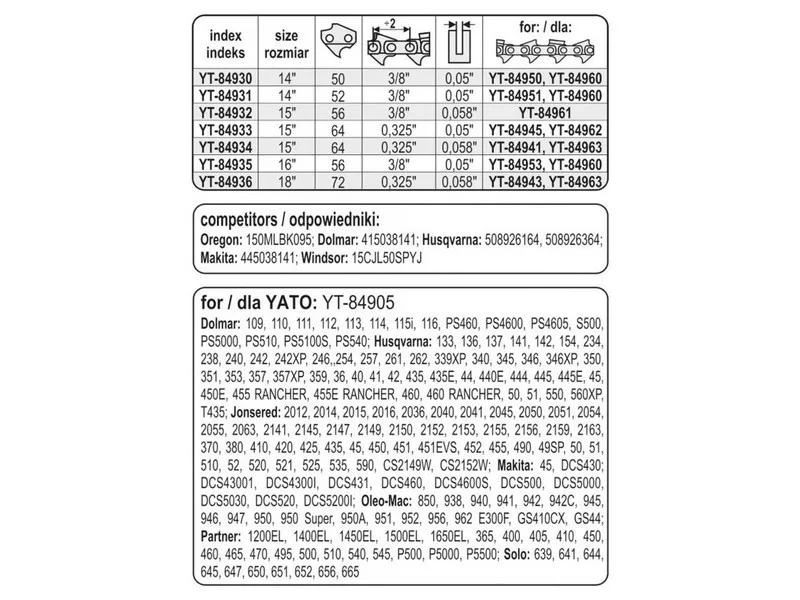

| For chainsaws | YT-84905 |
| For chains | YT-84945, YT-84962 |
| Chain pitch | 0.325" (8.25 mm) |
| Guide link length | 0.05" (1.3 mm) |
| Links quantity | 64 |
| Guide bar length | 15" (380 mm) |
| Guide bar thickness | 0.322" (8.2 mm) |
| Material | steel 65Mn |
| Mounting type | U |
| Automatic chain lubrication | yes |
| Rivets quantity | 4 |
| Number of teeth | 12 |
| Bearing | yes |
| Bearing type | roller |
| Symbol | YT-84933 |
Chain guide for chainsaws. Manufactured from Mn65 manganese steel, which significantly increases the guide's resistance to abrasion and overheating, extending its life.
The star tip is attached with 4 rivets, ensuring the highest precision installation and increasing the strength of the guide. Besides, the star end has a roller bearing that guarantees precise chain guidance, minimizing resistance during operation.
YATO guides have a special lubrication system with an oil reservoir, from which the chain collects oil and distributes it evenly along the entire length of the bar. This reduces operating resistance and increases cooling, which significantly extends the life of the entire cutting system. YATO guides are designed for home and professional use. They are dedicated to work around the house, in the garden. They are also successfully suitable for tree felling work.
YATO YT-84933 guide bar is designed for use with, among others, YATO YT-84905 chainsaw.It is suggested to use the guides with YATO YT-84945 or YT-84962 chains.It is also possible to use them with chains from other manufacturers.
Usage warnings:
Warning! Always use personal safety equipment at work.
