| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 400 W |
| Max. capacity | 12000 l/h |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |

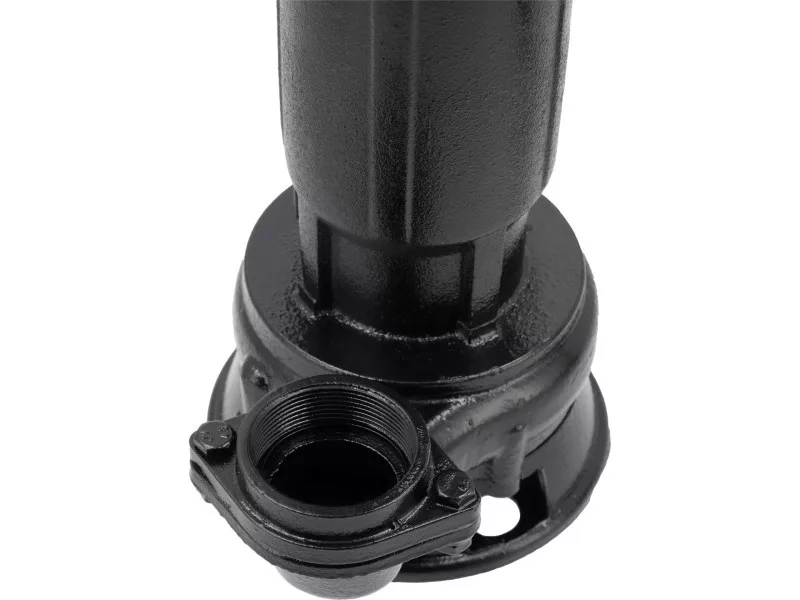

| Water outlet diameter | 2" (50 mm) |
| Max. head | 7.5 m |
| Max. submersion depth | 5 m |
| Min. shaft dimensions | 40x40x50 cm |
| Max. foreign matter diameter | 30 mm |
| Max. water temperature | 35 ˚C |

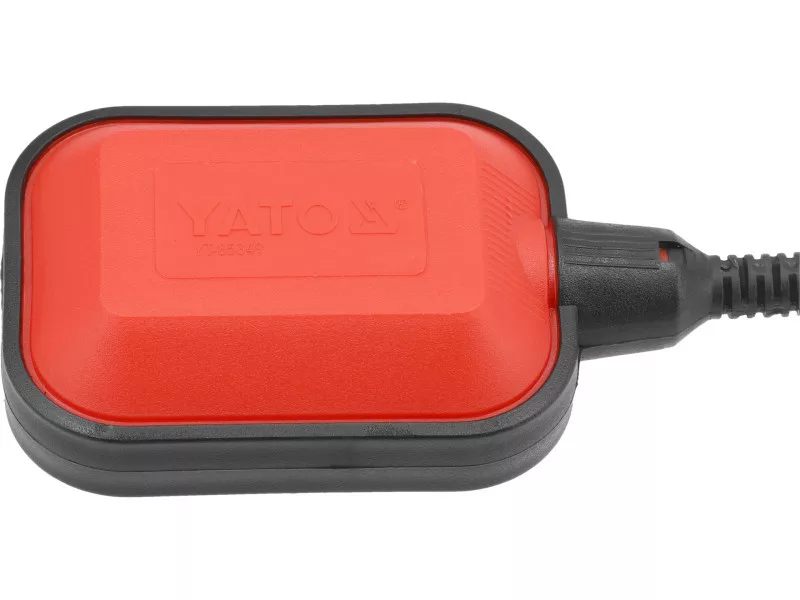

| Float switch | yes |
| Thermal switch | no |
| Power on level | ok. -0.5 m |
| Power off level | ok. -0.07 m |
| Casing material | cast iron |
| Dimensions (diameter x height) | 160x340 mm |
| Wire length | 10 m |
| Electric insulation class | I |
| Protection grade | IP68 |
| Weight | 14 kg |
| Application | pumping rainwater, infiltration water and sewage from households and backyards, emergency drainage of flooded areas, |
| Application contd | pouring clean or moderately contaminated liquids, but without stones or similar large objects |
| Symbol | YT-85349 |

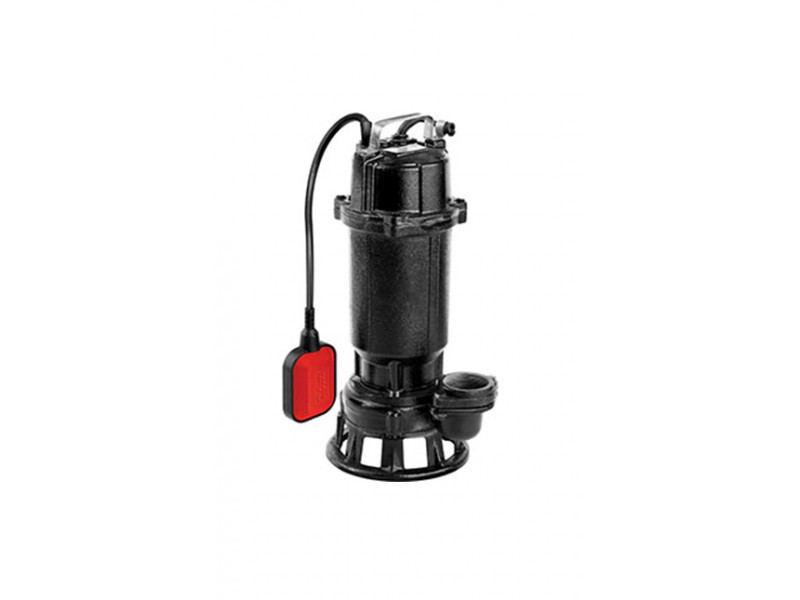

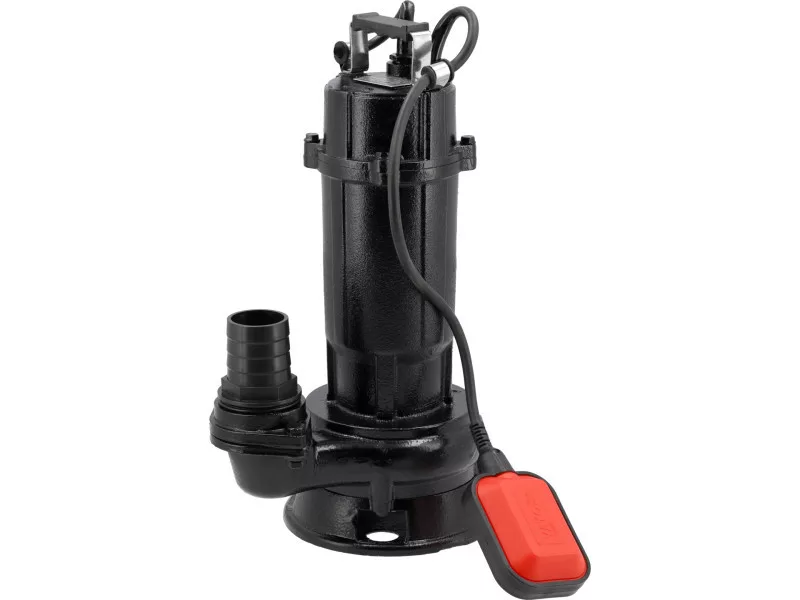

The Yato pump can be used for pumping wastewaterófrom household septic tanks and water from flooded rooms. The pump can also be rós used for incidental waterproofing excavation trenches. It is a robust pump thatós made of durable materialsóensuring trouble-free operation.
Pump is perfect for:
- pumping rainwater, infiltration water and wastewaterós from households and households
- .emergency dewatering of submerged areasów
- .overflow of clean or moderately contaminated liquids, but without stones or similar large objectsów
Parameters:
- power 0.4 kW
- cast iron housing
- copper coil

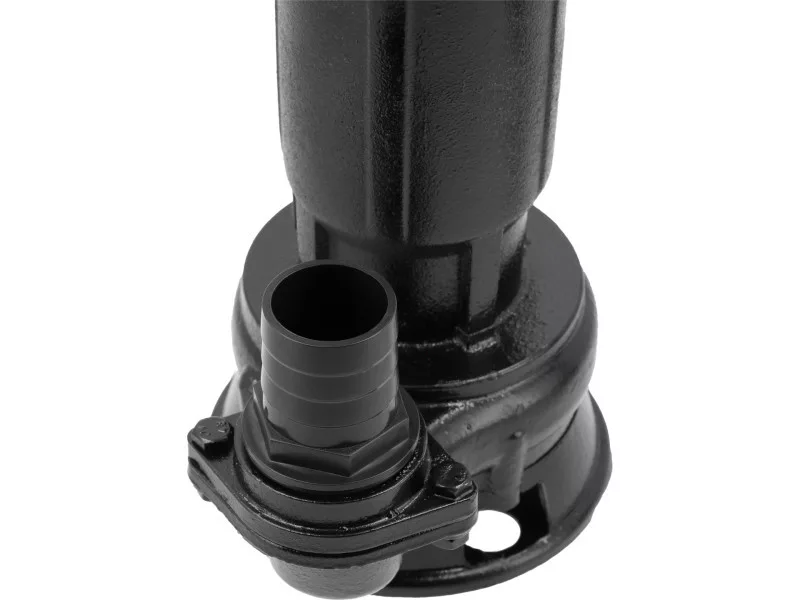

- outlet diameter 2’’
- max flow rate 200l/min
- discharge height 7.5m
- transportód 10m
